MSI PRO Z690-A WIFI DDR4 motherboard Intel Z690 ATX

• Brand: MSI
• Model Name: PRO Z690-A WIFI DDR4
• Chipset Type: Intel Z690
• CPU Socket: LGA 1700
• Compatible Processors: Intel Celeron
• Compatible Devices: Personal Computer
• RAM Technology: DDR4
• Memory Clock Speed: 5200 MHz
• Memory Storage Capacity: 128 GB
• Platform: Windows 10, Windows 11

About this item:

• DEPENDABLE VRM, 12TH GEN CORE READY - The PRO Z690-A WIFI DDR4 employs a 14+1+1 duet rail VRM platform (55A) with DrMOS for the Intel Z690 chipset (LGA 1700, 12th Gen Core ready); Core Boost architecture supports demanding multi-core processors

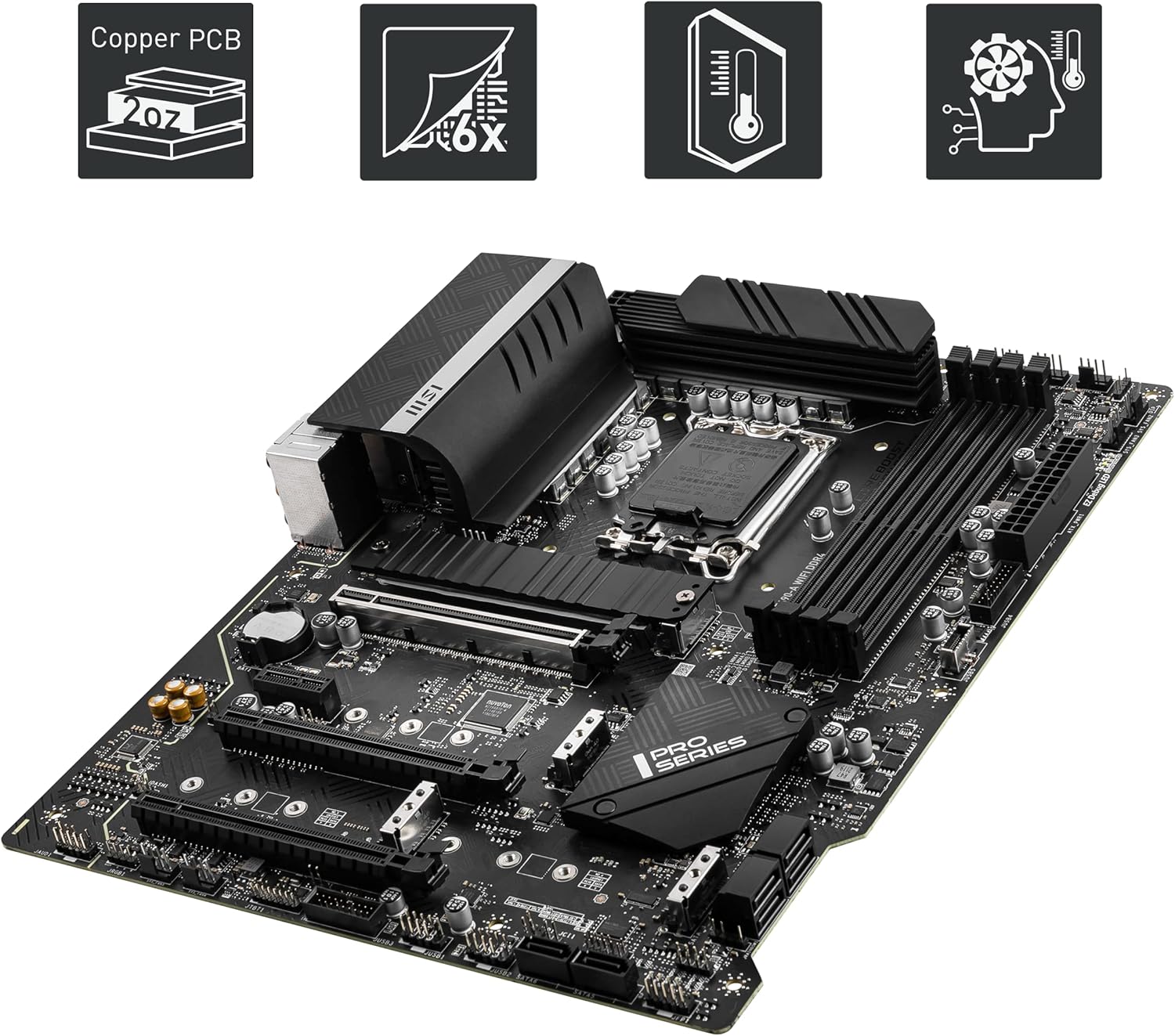

• COOL & EFFICIENT - Frozr AI Cooling adjusts fan cooling based on system temperatures; Cooling hardware includes 7W/mK MOSFET thermal pads & an extended heatsink design, M.2 Shield Frozr & a 6-layer server-grade PCB with 2oz of thickened copper

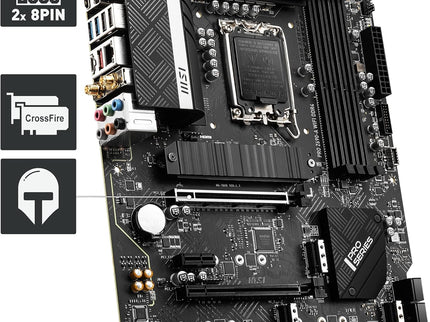

• DDR4 MEMORY, PCI-E 5.0 x16 SLOT - 4 x DDR4 DIMM SMT slots enable high-speed memory and improve signal clarity (1DPC 1R, 5200+ MHz); A PCIe 5.0 x16 SMT slot (126GB/s) supports cutting-edge graphics cards (2 x PCIe 3.0 x16 slots, AMD CrossFire supported)
• TRIPLE M.2 GEN4 CONNECTORS - Premium storage options consist of 3 x M.2 Gen4 x4 64Gbps slots & 1 x M.2 Gen3 x4 32Gbps slot (Intel Optane supported) with Shield Frozr (M2_1) to prevent SSD thermal throttling
• WI-FI 6 CONNECTIVITY - Network hardware includes Intel Wi-Fi 6 with Bluetooth 5.2 & Intel I225V 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 HD Audio with Audio Boost
